When it comes to efficient crop protection and property maintenance, a 3 pt hitch sprayer stands as one of the most versatile attachments for your tractor. These specialized spraying systems mount directly to your tractor’s three-point hitch system, providing precise chemical application for everything from herbicide treatments to fertilizer distribution. Whether you’re managing a small hobby farm or maintaining extensive pastureland, understanding the features, benefits, and selection criteria for three point hitch sprayers can significantly impact your operational efficiency and long-term success.
The agricultural spraying industry has evolved dramatically over the past decade, with manufacturers focusing on improved pump technologies, better tank materials, and more precise nozzle systems. Modern 3 pt hitch sprayers incorporate advanced features like electronic flow control, GPS compatibility, and improved chemical resistance that weren’t available in previous generations. This technological advancement means today’s farmers have access to spraying equipment that delivers superior coverage while reducing chemical waste and environmental impact.

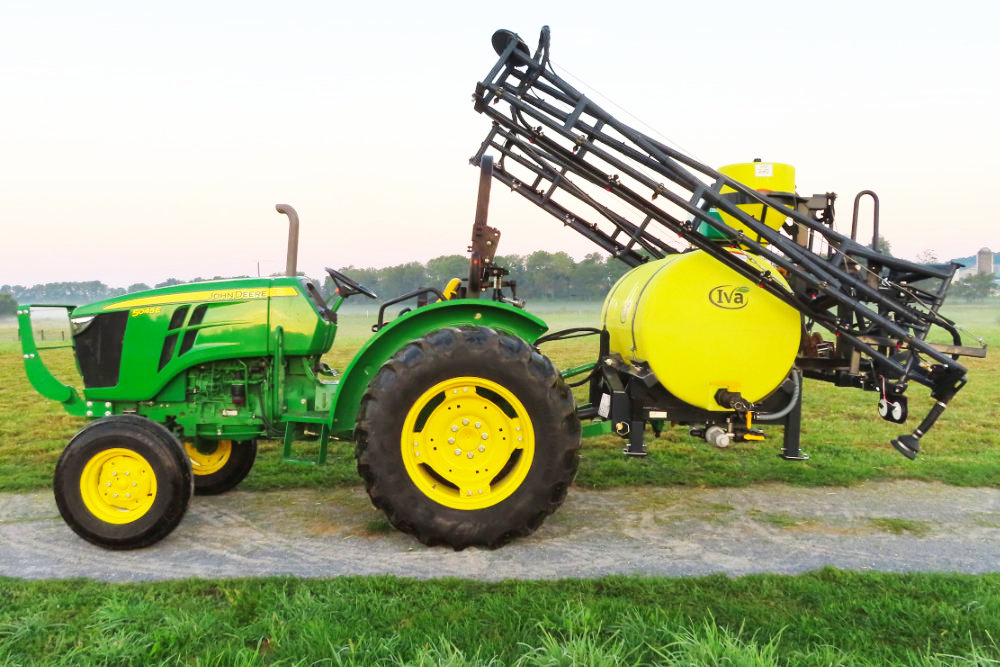

Understanding 3 Point Hitch Sprayer Systems
A 3 point hitch sprayer consists of several critical components working in harmony to deliver precise chemical application. The foundation of any quality system starts with the tank, typically ranging from 26 gallons for small property maintenance up to 300 gallons for commercial agricultural operations. These systems are equipped with capacity tanks, hydraulic pumps and manual agitation control, available with various boom configurations.
The pump system represents the heart of your 3 pt hitch sprayer operation. Modern units offer choices between 12 volt electric powered or PTO driven pumps to meet specific operational needs. Electric pumps provide consistent pressure and are ideal for smaller applications, while PTO-driven systems deliver higher flow rates and pressure capabilities necessary for large-scale operations. Heavy duty systems feature durable 22 GPM Hypro PTO Roller diaphragm pumps with maximum pressure ratings of 300PSI, enabling operators to complete large jobs efficiently.
Boom configuration plays a crucial role in determining your spraying efficiency and coverage patterns. All 3-point sprayers can be equipped with spray wands, folding 4, 7 or 17 nozzle booms or broadcast nozzles. The choice between boom and boomless systems depends on your specific application needs, with boom systems providing more precise coverage for row crops and boomless systems offering versatility for irregular terrain and fence line applications.
Key Components That Define 3 Pt Hitch Sprayer Performance
Tank Construction and Materials Modern three point hitch sprayers utilize high-density polyethylene tanks that resist chemical corrosion and UV degradation. These tanks feature molded-in fittings, graduated sight gauges, and large 8-inch openings for easy filling and cleaning. The tank design incorporates baffles to minimize chemical surge during transport and operation, ensuring consistent spray pressure and reducing tractor stability issues.
Pump Technologies Available
- Electric Diaphragm Pumps: Feature 2.4 GPM 12 volt on-demand diaphragm pumps suitable for moderate pressure applications
- PTO-Driven Roller Pumps: Deliver higher flow rates and pressure capabilities for demanding commercial applications
- Centrifugal Pumps: Provide high-volume, low-pressure applications ideal for liquid fertilizer distribution
Boom System Options Professional 3 pt hitch sprayer systems offer multiple boom configurations to match specific application requirements. Available configurations include 30′ or 45′ manual systems, 45′ or 60′ hydraulic cross-fold, self-leveling booms with three-section boom shutoff. These advanced boom systems incorporate outer wing breakaway protection that quickly returns to spraying position after encountering obstacles.
Top 3 Pt Hitch Sprayer Brands and Models for 2025
FIMCO 3 Point Sprayers
FIMCO has established itself as a leading manufacturer of quality three point sprayers designed for small to medium acreage applications. FIMCO 3 Point Sprayers are built to specifications for small acreage and rural applications, designed to attach to category 1, 3 point hitch systems. Their product line includes models ranging from 25-gallon compact units up to 60-gallon professional systems.
Popular FIMCO Models:
- 40-Gallon Electric Model: Features 2.4 GPM electric pump, 4-nozzle folding boom
- 60-Gallon PTO Model: Heavy-duty construction with roller pump system
- 25-Gallon Compact: Perfect for small property and spot treatments
John Deere 3 Point Sprayers
John Deere’s 45 Gallon Deluxe 3PT Hitch Sprayer represents high-performance equipment for discerning customers wanting extreme performance without PTO requirements. John Deere systems emphasize reliability, precision, and integration with their tractor platforms.
Key Features:
- Precision pressure regulation systems
- Corrosion-resistant components
- Integrated boom fold systems
- Advanced nozzle technology
Bestway Ag 3 Point Systems
Bestway Ag manufactures both boom and boomless 3 pt hitch sprayer systems with focus on durability and versatility. Their systems cater to both agricultural and commercial landscape applications.
Top Air Equipment Sprayers
For larger operations, Top Air offers 300-gallon capacity systems with hydraulic pumps, manual agitation control, and boom options ranging from 30′ to 60′ with hydraulic cross-fold capabilities.
3 Pt Hitch Sprayer Tank Capacity Selection Guide
| Tank Size | Ideal Application | Coverage Area | Tractor HP Required |
|---|---|---|---|
| 25-30 Gallon | Small properties, spot treatments | 1-5 acres | 15-25 HP |
| 40-45 Gallon | Medium farms, pasture maintenance | 5-15 acres | 25-40 HP |
| 55-60 Gallon | Large properties, commercial use | 15-30 acres | 40-60 HP |
| 100+ Gallon | Commercial agriculture | 30+ acres | 60+ HP |
Tank capacity selection directly impacts your operational efficiency and chemical application costs. Smaller tanks require more frequent refilling but offer better maneuverability in tight spaces and reduced chemical waste for small applications. Larger tanks maximize field time but require more powerful tractors and careful attention to weight distribution.
The relationship between tank size and tractor horsepower becomes critical for safe operation. Category I hitches are designed for tractors under 50 horsepower, while larger systems require Category II or III hitch systems with appropriate horsepower ratings.
Pump System Comparison: Electric vs PTO 3 Point Hitch Sprayers
Electric Pump Advantages
Electric-powered 3 pt hitch sprayers offer several operational benefits that make them attractive for many applications. These systems provide consistent pressure regardless of engine RPM, allowing operators to maintain optimal spray pressure while varying tractor speed. Electric pumps typically operate more quietly than PTO systems and don’t require additional mechanical connections to the tractor’s power takeoff system.
Benefits of Electric Systems:
- Constant Pressure: Maintains consistent spray pressure independent of engine speed
- Quiet Operation: Reduces operator fatigue during extended spraying sessions
- Easy Installation: No PTO shaft requirements simplify mounting and setup
- Variable Speed Control: Electronic controls allow precise pressure adjustment
PTO-Driven Pump Benefits
PTO-powered systems excel in applications requiring high flow rates and maximum pressure capabilities. Heavy duty PTO roller diaphragm pumps deliver maximum pressure of 300PSI enabling completion of large jobs efficiently. These systems draw power directly from the tractor’s engine, providing unlimited operating time without battery concerns.
PTO System Advantages:
- High Pressure Capability: Delivers maximum pressure for demanding applications
- Unlimited Runtime: No battery limitations for extended operations
- Higher Flow Rates: Supports larger boom systems and multiple nozzle configurations
- Professional Performance: Preferred choice for commercial agricultural applications
Boom Configuration Options for 3 Pt Hitch Sprayers
Fixed Boom Systems
Fixed boom configurations provide the most precise coverage patterns for regular field applications. These systems maintain consistent nozzle height and spacing, ensuring uniform chemical distribution across the entire spray width. Fixed booms work best in open field conditions where obstacles are minimal and consistent coverage patterns are priority.
Folding Boom Technology
Modern folding boom systems feature 4-nozzle configurations with self-aligning TeeJet AIXR 0.2 GPM nozzles. Folding booms provide operational flexibility by allowing transport through narrow gates and storage in compact spaces while maintaining professional spray coverage in field conditions.
Folding Boom Benefits:
- Transport Convenience: Fold for passage through gates and narrow areas
- Storage Efficiency: Compact storage in barns and equipment sheds
- Versatile Coverage: Adjustable width for different field conditions
- Professional Results: Maintains even spacing for consistent coverage
Boomless Spray Systems
Boomless three point hitch sprayers utilize specialized nozzles that create wide spray patterns without traditional boom structures. These systems excel in irregular terrain, fence line applications, and areas with numerous obstacles that would damage conventional boom systems.
Installation and Setup Requirements
Tractor Compatibility Assessment
Available 3 point sprayers are complete spraying systems designed for use with compact tractors and sub compact tractors with category I hitch hookup systems. Proper tractor compatibility ensures safe operation and optimal performance from your 3 pt hitch sprayer investment.
Pre-Installation Checklist:
- Hitch Category Verification: Confirm Category I, II, or III compatibility
- Hydraulic Requirements: Verify remote hydraulic availability for boom control
- Electrical Connections: Ensure 12V power supply for electric pump systems
- Weight Distribution: Calculate loaded weight distribution for stability
Professional Installation Considerations
Complete 3 point sprayers come fully plumbed with pressure gauges, in-line strainers, pressure relief regulators and shut-off valves for immediate use. Professional installation ensures all safety systems function properly and chemical handling procedures meet regulatory requirements.
High-quality systems include operating pressure of 580 psi, 15′ of high-pressure hose, Hypro manual control with two on/off valves, pressure gauge, and pressure relief valve, delivered fully assembled and ready for use.
Maintenance and Safety Protocols
Routine Maintenance Schedule
Daily Pre-Operation Checks:
- Inspect tank for cracks or chemical residue buildup
- Verify all hose connections are secure and leak-free
- Test pump pressure and flow rate consistency
- Examine boom structure for damage or loose components
- Check nozzle condition and spray pattern quality
Weekly Maintenance Tasks:
- Clean tank interior with appropriate neutralizing agents
- Inspect pump diaphragms and seals for wear
- Lubricate boom pivot points and folding mechanisms
- Test pressure relief valve operation
- Verify electrical connections are clean and tight
Seasonal Maintenance Requirements:
- Replace worn nozzles and strainer elements
- Service pump according to manufacturer specifications
- Inspect and replace hydraulic hoses showing wear
- Calibrate pressure gauges and flow meters
- Winterize system in cold climate regions
Chemical Safety Protocols
Proper chemical handling procedures protect operators, equipment, and environmental resources. 3 pt hitch sprayers require specific safety protocols due to their direct contact with concentrated chemicals and large tank capacities.
Personal Protective Equipment Requirements:
- Chemical-resistant gloves and protective clothing
- Eye protection and respiratory equipment when appropriate
- Emergency eyewash and chemical neutralization supplies
- First aid supplies specific to chemicals being applied
Performance Optimization Techniques
Spray Pattern Calibration
Achieving optimal coverage requires precise calibration of your three point hitch sprayer system. Proper calibration ensures accurate chemical application rates while minimizing waste and environmental impact.
Calibration Process Steps:
- Nozzle Flow Rate Testing: Measure individual nozzle output over specific time periods
- Pressure Adjustment: Set system pressure according to nozzle manufacturer specifications
- Speed Calculation: Determine optimal tractor speed for desired application rate
- Coverage Verification: Use water-sensitive paper to verify spray pattern uniformity
Chemical Mixing Best Practices
Proper chemical mixing procedures maximize effectiveness while protecting equipment components. Tank agitation systems ensure chemical uniformity throughout the spraying operation.
Mixing Sequence Protocols:
- Fill tank 1/3 with clean water before adding chemicals
- Add chemicals in order specified by manufacturer instructions
- Engage agitation system during mixing and operation
- Complete filling with remaining water while maintaining agitation
Cost Analysis and Return on Investment
Initial Investment Considerations
Price Ranges by Category:
- Small Electric Systems (25-40 gallons): $800-$2,500
- Medium PTO Systems (45-60 gallons): $2,500-$5,000
- Large Professional Systems (100+ gallons): $5,000-$15,000+
Operational Cost Benefits
Investing in a quality 3 pt hitch sprayer provides significant long-term cost savings compared to custom application services or smaller handheld equipment. Professional systems reduce chemical waste through precise application and improve coverage efficiency.
Annual Cost Savings:
- Reduced Custom Application Fees: Save $15-25 per acre versus hiring services
- Improved Chemical Efficiency: Reduce waste by 10-20% through precise application
- Labor Time Savings: Cover 5-10x more area per hour than manual methods
- Equipment Longevity: Quality systems provide 10-15 years of reliable service
Troubleshooting Common 3 Pt Hitch Sprayer Issues
Pressure-Related Problems
Inconsistent pressure represents the most common operational issue with three point sprayers. Users report pump pressure control capabilities but note potential leak issues requiring maintenance attention.
Common Pressure Issues:
- Fluctuating Pressure: Often caused by clogged strainers or worn pump diaphragms
- Low Pressure Output: May indicate pump wear or incorrect nozzle selection
- Pressure Relief Problems: Faulty relief valves can cause pressure spikes or drops
Boom-Related Challenges
Boom systems face unique operational challenges due to their exposure to field conditions and mechanical stress.
Typical Boom Problems:
- Uneven Spray Patterns: Usually caused by clogged or worn nozzles
- Boom Bounce: Results from insufficient boom stabilization or excessive speed
- Hydraulic Fold Issues: Often related to contaminated hydraulic fluid or worn cylinders
Regulatory Compliance and Environmental Considerations
EPA Compliance Requirements
3 pt hitch sprayer operations must comply with federal and state environmental regulations governing chemical application and storage. These regulations protect water resources, wildlife habitats, and public health.
Key Compliance Areas:
- Chemical Storage: Proper containment and labeling requirements
- Application Records: Detailed documentation of chemicals, rates, and locations
- Buffer Zone Management: Maintaining required distances from water sources
- Drift Prevention: Using appropriate nozzles and application techniques
Environmental Protection Strategies
Modern three point hitch sprayers incorporate features designed to minimize environmental impact while maintaining application effectiveness.
Environmental Protection Features:
- Drift-Reduction Nozzles: Produce larger droplets that resist wind drift
- GPS Integration: Prevents over-application and ensures precise coverage
- Tank Rinse Systems: Enable complete chemical removal between applications
- Boom Height Control: Maintains optimal height for effective coverage
Technology Integration and Future Developments
GPS and Precision Agriculture
Advanced 3 pt hitch sprayer systems integrate with GPS technology to provide section control, variable rate application, and detailed field mapping capabilities. This technology reduces chemical costs while improving application precision.
Technology Benefits:
- Automated Section Control: Eliminates overlap and skipped areas
- Variable Rate Application: Applies chemicals based on soil conditions and crop needs
- Field Mapping: Creates detailed application records for compliance and analysis
- Integration Capability: Works with farm management software systems
Smart Spraying Technologies
Emerging technologies promise to revolutionize three point sprayer capabilities through artificial intelligence and sensor integration.
Future Technology Trends:
- Weed Detection Systems: Identify and treat only areas requiring treatment
- Weather Integration: Automatically adjust for wind and humidity conditions
- Predictive Maintenance: Monitor system health and predict component failures
- Remote Monitoring: Enable real-time system monitoring and control
Frequently Asked Questions About 3 Pt Hitch Sprayers
What size 3 pt hitch sprayer do I need for my property?
Tank size selection depends on your acreage, tractor horsepower, and application frequency. Properties under 10 acres typically work well with 25-40 gallon systems, while larger operations benefit from 60+ gallon tanks that reduce refill frequency and increase efficiency.
Can I use a 3 point hitch sprayer with my compact tractor?
Most 3 point sprayers are designed for use with compact tractors and sub compact tractors with category I hitch hookup systems. Verify your tractor’s hitch category and hydraulic capabilities before purchasing to ensure proper compatibility.
What’s the difference between boom and boomless three point sprayers?
Boom systems provide more precise coverage patterns ideal for regular field applications, while boomless systems offer versatility for irregular terrain and areas with obstacles. Boomless systems use specialized nozzles to create wide spray patterns without traditional boom structures.
How do I maintain my 3 pt hitch sprayer properly?
Regular maintenance includes daily pre-operation checks, weekly tank cleaning, nozzle inspection, and seasonal pump servicing. Systems come with pressure gauges, in-line strainers, and pressure relief regulators that require regular inspection and maintenance.
What pump type should I choose for my 3 point sprayer?
Choose between 12 volt electric powered or PTO driven pumps based on your specific needs. Electric pumps provide consistent pressure and quiet operation, while PTO systems deliver higher pressure and flow rates for demanding commercial applications.
How do I calibrate my 3 pt hitch sprayer for accurate application?
Calibration involves testing nozzle flow rates, setting appropriate pressure levels, calculating optimal travel speed, and verifying spray pattern uniformity. Use water-sensitive paper to check coverage patterns and adjust as needed for your specific application requirements.
For those also interested in protective equipment, you might find our guide on anti fog spray for glasses helpful for maintaining clear vision during spraying operations.
Ready to find the perfect 3 pt hitch sprayer for your operation? Browse our selection of top-rated 3 pt hitch sprayers from leading manufacturers. Compare features, read customer reviews, and find the ideal system for your specific needs. Shop now and take advantage of seasonal discounts on professional-grade spraying equipment.
